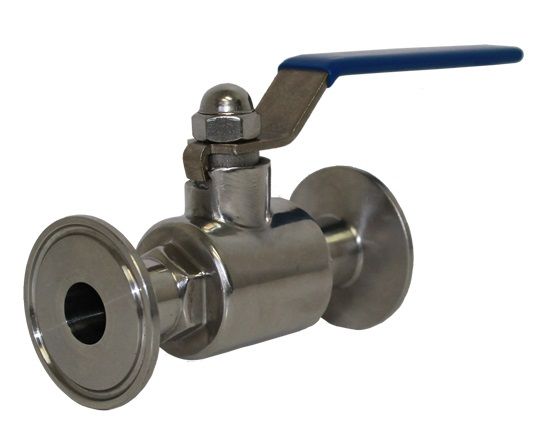

Stainless Tri-Clamp Ball Valve 1.5"TC

• Size:
• ● 1.5" Tri-Clamp Connections on both ends by 3/4" Economy Ball Valve
• Uses:
• ● This is an Ideal Sanitary Ball Valve for home brew applications, since the ID is congruent with a 3/4" Tri-Clamp Fitting which suits low flow rates better than the Large ID of a 1.5" TC Ball Valve.

• Uses:
• ● The Economy Style Tri-Clamp 2-piece Ball Valves are great at controlling flow rates.
• ● Ball Valves are frequently mounted at the very end of CIP tubing.
• ● In Brewing applications, they are often used on pump outlets and on vessel returns for example in vorlauf returns and mash tun sparges.
• Advantages:
• ● The most economical option and made with a polished finish.
• ● Better than Butterfly Valves for flow rate control.
• Cleaning:
• ● These Sanitary ball valves can be taken apart for cleaning and can be treated as a threaded ball valve and cleaned after each use.
• Operation:
• ● Valve handles are inline when fully open and swing out from the center of valve body to close the flow.
• ● 90 degrees will completely shut off the flow, while anything in between will control the flow rate to various degrees.
• ● This 1/4 turn from the "ON" position to the "OFF" position allows for precise flow rate control.
• Full Port:
• ● Being a full port design, they offer a full unobstructed flow that matches the line size.
• Handles:
• ● Valve Handles are of a flat design for an easy opening/closing action, with a plastic handle cover to increase gripping power.
• ● Handles covers can be special printed to display your company name.
• Materials:
• ● Manufactured from long lasting stainless steel 304.

Specifications:

• Outside Diameter of Flange (OD): 1.984" (1" & 1.5" Tri-Clamp End Connection)
• Internal Diameter (ID): 0.625"
• Overall Length (OAL): 4"
